Product Overview

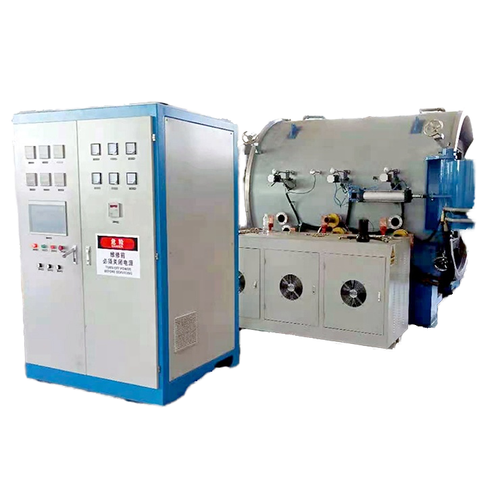

Introducing Omni R&D LLC's 1800°C Atmosphere Furnace, a cutting-edge thermal processing solution designed to deliver unparalleled performance and versatility. This state-of-the-art furnace is engineered to meet the highest standards in material research, development, and production, offering exceptional temperature control, environmental protection, and energy efficiency.
Omni R&D LLC's 1800°C Atmosphere Furnace is a testament to innovative design and advanced technology. Capable of reaching temperatures up to 1800°C, this furnace is perfect for a wide range of applications, including material synthesis, sintering, and heat treatment processes. With a maximum continuous working temperature of 1650°C and a short-term working temperature of 1700°C, this furnace ensures reliable and consistent results.
Key Features:
- Maximum Design Temperature: 1800°C
- Continuous Working Temperature: 0-1650°C
- Short-term Working Temperature: 1700°C
- Heating Rate: 0-5°C/Min
- Maximum Vacuum: -0.1MPa
- Heating Element: 1800°C MoSi2 heating element
- Thermocouple: B-type
- Temperature Accuracy: ±1°C
- Atmosphere Control: Capable of handling various protective, destructive, inert, mixed, nitrogen, and oxygen gases
- Gas Control System: Multiple air inlets with ball valves and vacuum gauges, air outlet with ball valve, equipped with a vacuum pump
- Furnace Chamber Material: Advanced lightweight alumina ceramic fiber with excellent thermal insulation, high-temperature resistance, and energy-saving properties (60-80% more efficient than traditional furnaces)
- Furnace Chamber Design: Stepped assembly structure for uniform force distribution and heat retention
- Furnace Shell Structure: Double-layer forced air cooling system for safe external temperatures
- Sealing System: Integral plane-milled furnace door with silica gel strip embedded seal for strong sealing and easy operation
- Temperature Control: Advanced temperature controller with 30 programmable PID self-tuning, automatic temperature rise and fall
- Temperature Control Security: Integrated circuit module control, double circuit protection (partial temperature protection, ultra-high temperature protection, thermocouple protection, overcurrent protection, overpressure protection)
Specifications:
- Standard Chamber Sizes:
- 1L (D100W100H100mm), Power: 2kW, Voltage: 220V single phase
- 4.5L (D200W150H150mm), Power: 4kW, Voltage: 220V single phase
- 12L (D300W200H200mm), Power: 9kW, Voltage: 380V 2-phase
- 36L (D400W300H300mm), Power: 16kW, Voltage: 380V 2-phase
Equipped With:
- 1800°C MoSi2 heating element
- B-type thermocouple
- Gas control system with air inlets, outlets, and vacuum pump
- Advanced lightweight alumina ceramic fiber insulation
- Stepped assembly furnace chamber structure
- Double-layer forced air cooling system
- Integral plane-milled furnace door with silica gel strip embedded seal
- Advanced temperature controller with 30 programmable PID self-tuning
- Integrated circuit module control with double circuit protection
Available Options:
- Custom chamber sizes and configurations
- Integration with advanced monitoring and control systems
- Specialized gas handling and atmosphere control systems
- Customized heating elements and insulation materials
Compliance and Certifications:
- CE Certified
- SGS Certified
- ISO Certified
- UL Certified
Warranty:
- One-year limited warranty with lifetime support (excluding heating elements, cooling fans, and thermocouples damaged by user)
- Warranty does not cover damages caused by corrosive or acidic gases, or damages resulting from improper operation and use.
