Product Overview
Atmospheric Curing Bath for Cement Compressive-Strength Cubes

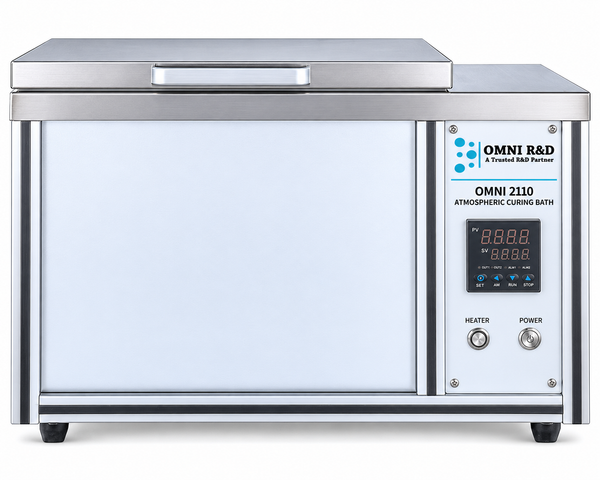

The OMNI 2110 cures oilwell cement compressive-strength cubes in a temperature-controlled water bath at atmospheric pressure, from ambient up to 93.3 °C (200 °F). It holds 16 cube specimens for laboratory preparation ahead of compressive-strength testing.
Key Features
- Digital temperature controller with 0.1 °C display resolution and ±1 °C control.
- 16-cube capacity using four 2-gang cube molds.
- Stainless-steel water bath for corrosion resistance and easy cleaning.
- Splash-guard lid with integrated baffle.
- Adjustable leveling feet for level molds on the bench.
- Compact benchtop design for routine cement lab workflows.
Technical Specifications
| Temperature range | Ambient to 93.3 °C (200 °F) |
| Control accuracy | ±1 °C |
| Operating pressure | Atmospheric |
| Specimen capacity | 16 cubes (four 2-gang molds) |
| Heater power | 1.5 kW |
| Power supply | 120 V, single-phase, 60 Hz |
| Dimensions (W × D × H) | 57 × 39 × 41 cm (22.4 × 15.4 × 16.1 in) |
| Net weight | 28 kg (62 lb) |
| Test procedures | Designed for atmospheric cube curing per API RP 10B-2 procedures |
| Warranty | 1 year from delivery |
Ordering & Support
Request a quote for pricing, lead time, and cube molds. Payment by ACH/wire or check. FOB Covina, California. Contact richard@omnirnd.com or 626-536-8052.
Warranty Information
Omni R&D warrants that products will substantially conform to its published specifications for one year from the date of delivery. Warranty claims must be made in writing within that period.
This warranty does not apply where the product has been misused, modified, improperly installed, operated outside its rated parameters or applicable industry standards, connected to a power supply other than the one specified, or damaged by accident, neglect, or contamination. Consumable components — including heating elements, process tubes, crucibles, thermocouples, seals, and gaskets — are excluded.
