Product Overview

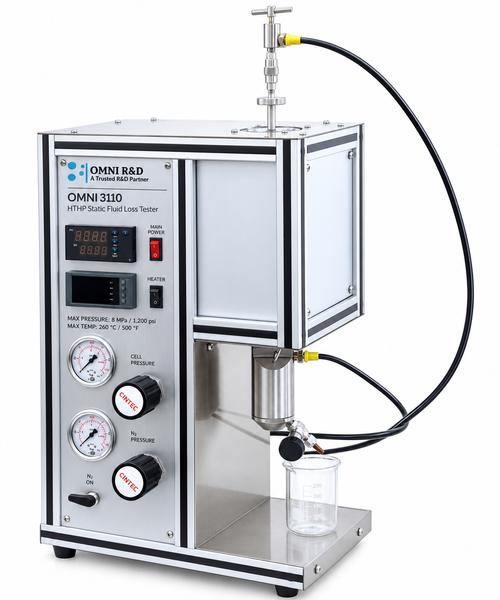

HTHP Static Fluid Loss Tester for Cement Slurries and Drilling Fluids
The OMNI 3110 measures static fluid loss of cement slurries and drilling fluids at high temperature and pressure. A heated stainless-steel test cell and regulated differential pressure simulate downhole filtration, and filtrate is collected through a standard screen for calculation under the selected test procedure.
Key Features
- PID temperature control with integrated thermocouple, to 260 °C (500 °F).
- Separate regulators for cell pressure and filtrate backpressure.
- 400 mL stainless-steel test cell with quick-connect gas fitting.
- 2,258 mm² filter area with welded 325-mesh screen.
- Digital timer showing elapsed time in seconds.
- Insulated heater flange to reduce hot-surface exposure.
- Aluminum-profile frame with compact benchtop footprint.
Technical Specifications
| Maximum temperature | 260 °C (500 °F) |
| Maximum cell pressure | 8 MPa (1,200 psi) |
| Cell capacity | 400 mL |
| Filtration area | 2,258 mm² |
| Filter screen | 325 mesh |
| Heater rating | 1.0 kW (1.2 kW total input) |
| Nitrogen supply | 8–13.8 MPa (1,160–2,000 psi), customer supplied |
| Power supply | 120 V, single-phase, 60 Hz |
| Dimensions (W × D × H) | 41 × 22 × 78 cm (16.1 × 8.7 × 30.7 in) |
| Net weight | 30 kg (66 lb) |
| Test procedures | Designed for fluid-loss testing per API RP 10B-2 procedures |
| Warranty | 1 year from delivery; screens and seals are consumables |
Ordering & Support
Request a quote for pricing and lead time. Spare screens, O-rings, and cells available. Payment by ACH/wire or check. FOB Covina, California. Contact richard@omnirnd.com or 626-536-8052.
Warranty Information
Omni R&D warrants that products will substantially conform to its published specifications for one year from the date of delivery. Warranty claims must be made in writing within that period.
This warranty does not apply where the product has been misused, modified, improperly installed, operated outside its rated parameters or applicable industry standards, connected to a power supply other than the one specified, or damaged by accident, neglect, or contamination. Consumable components — including heating elements, process tubes, crucibles, thermocouples, seals, and gaskets — are excluded.
